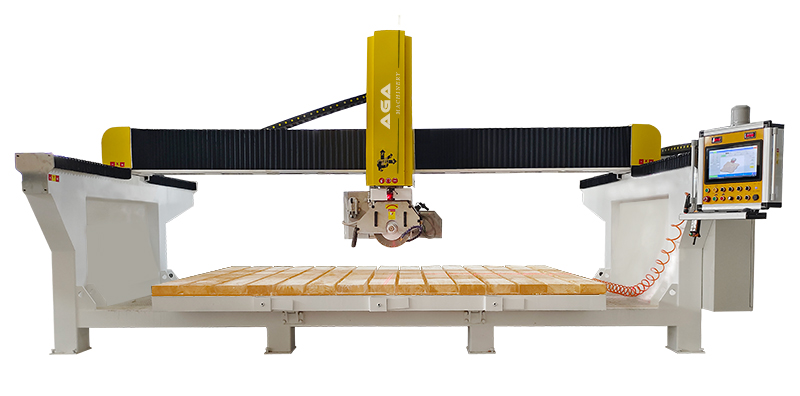

Bridge Saw Machine CNC 5+1 Axis

Magnus CNC bridge saw machine 5+1 axis for cutting and fabrications of granite, marble, quartz, ceramic and natural stones.

It is with a powerful blade motor 20 HP for cutting and Plus a drilling motor 10 HP for drilling, milling and engraving, especially efficient in cutting granite counter tops, slabs, vanity, steps, floors, etc.

ADVANTAGES

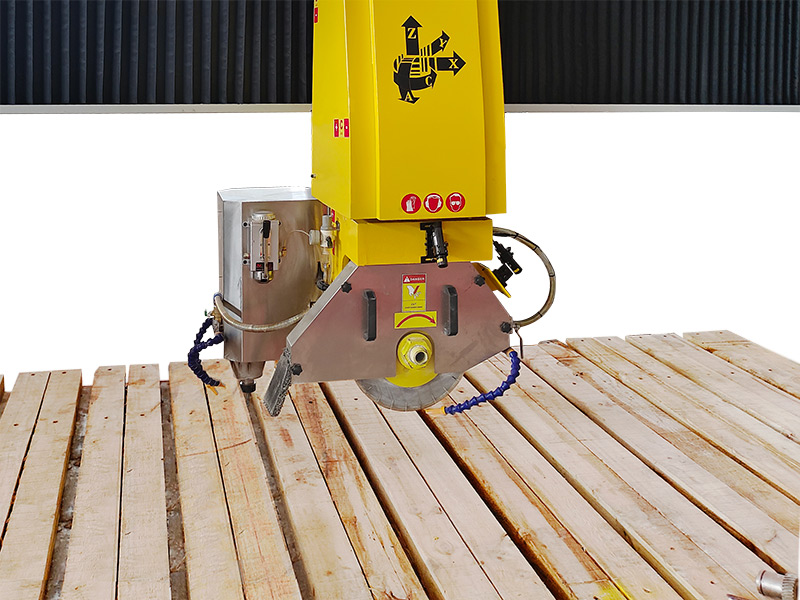

-  5 axis CNC (Computer Numerical Control) bridge saw PLUS a drilling head

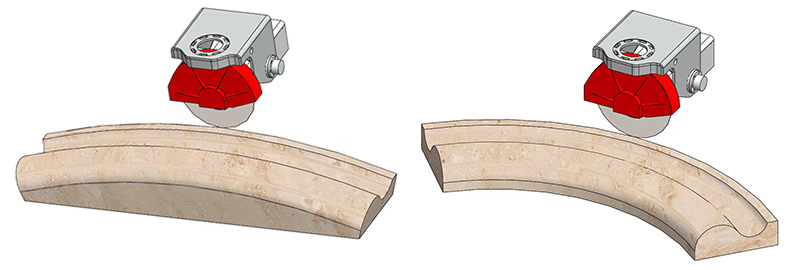

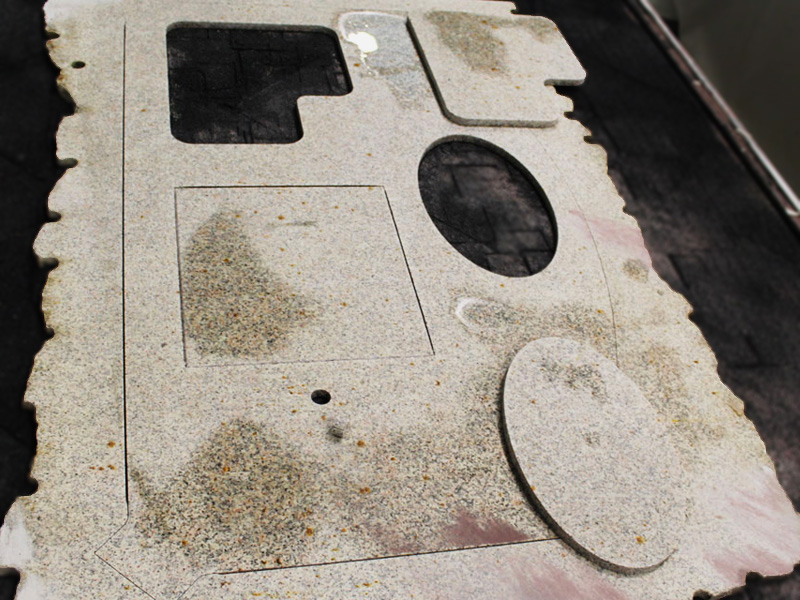

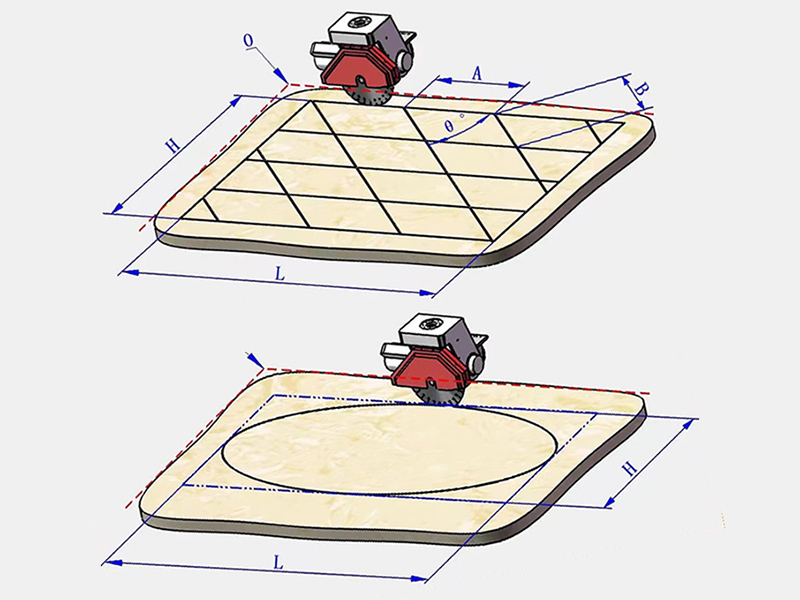

-  Able to do straight cut, miter cut, oval cut, curved cut, round cut, random angle cut, profiling, drilling, milling, engraving, etc.

-  Industrial-grade high precision camera captures slab pictures and sends to the screen for easy layout and cutting. What You See Is What You Get.

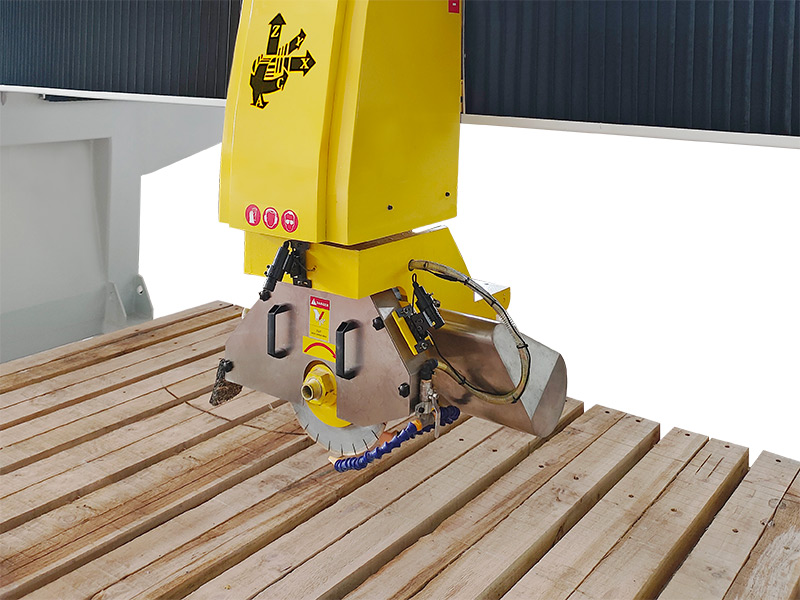

-  Automatic 0° - 360° head rotation and 0° - 90° tilt.

-  Hydraulic tilt table 0° - 85° for easy and safe load of big granite slab.

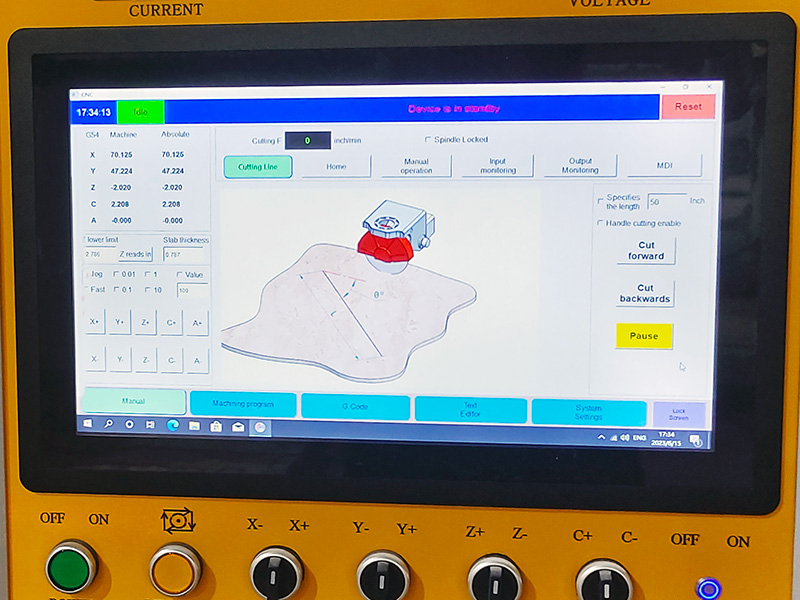

-  Touch Screen 15” with Wireless Remote Control capable of manual and automatic operations.

-  Load DXF file CAD automatically and CNC software (CAD CAM) for manual programming.

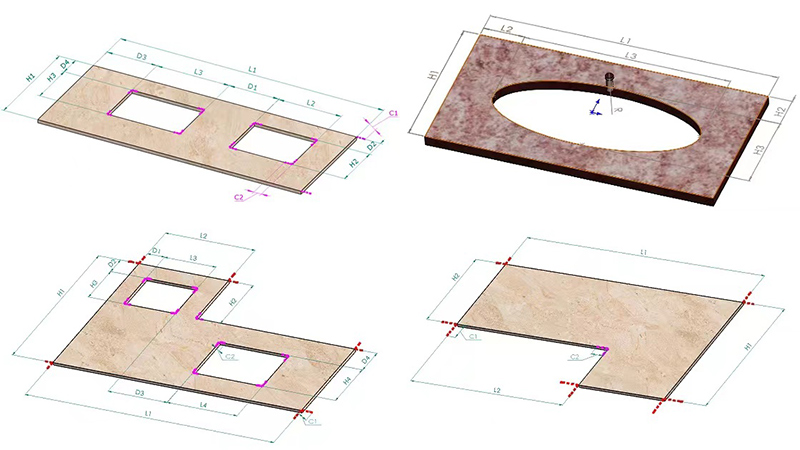

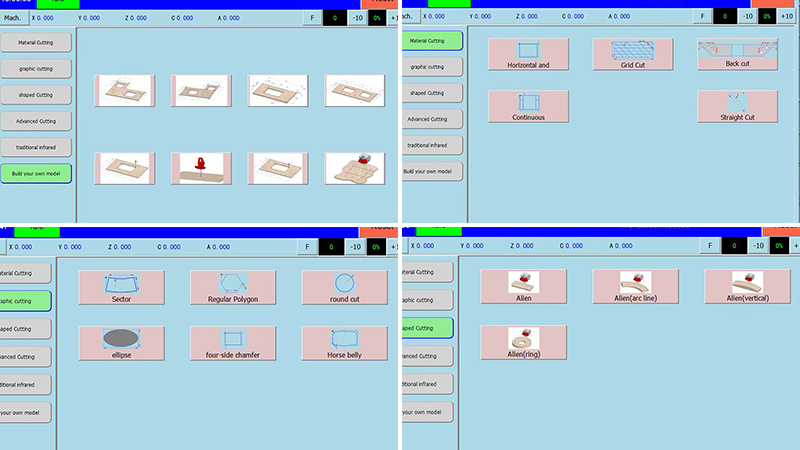

-  Built in menu with most Usual Designs for direct call and quick programming cut like Oval, Round, Polygon, Sector, etc.

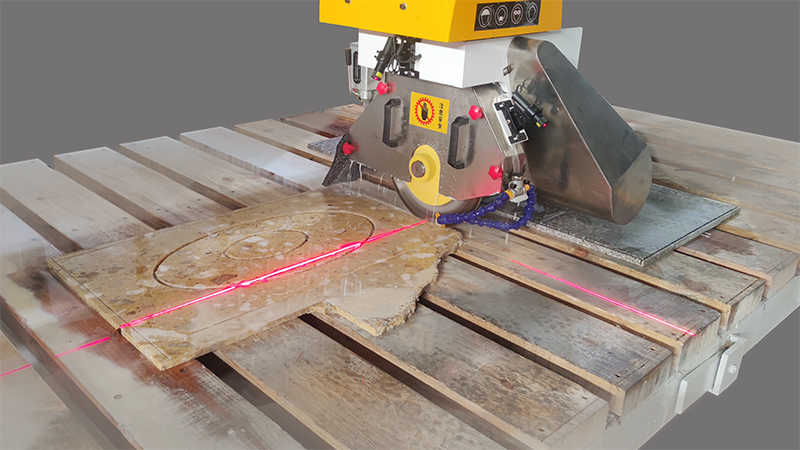

-  Green laser pointer mounted on blade cover for easy guide of cutting position.

-  Saw machine with premium parts like ball screw, linear guide, helical gear, planetary reducer, servo motor system, etc. ensuring high precision, flexibility and reliability.

-  Main structures are made of very strong steel for stability, durability and low resonance.

-  Monoblock structure small footprint easy install Plug and Play.

-  Operating Language in English, Spanish & Arabic and Input Size unit in Inch & mm.

-  Automatic suction cup of 6 chambers available.

-  Automatic measurement of slab thickness available.

-  Slab clamping pistons available.

-  Safety doors available.

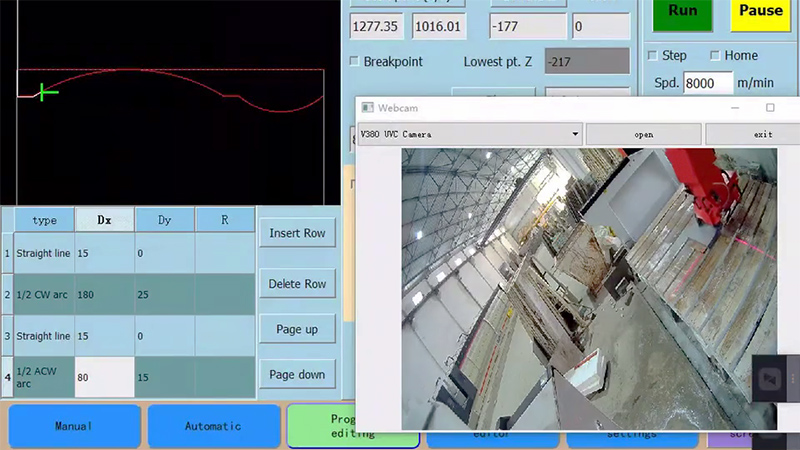

Magnus 5 bridge saw machine comes with a camera for remote support and monitoring of machine working.

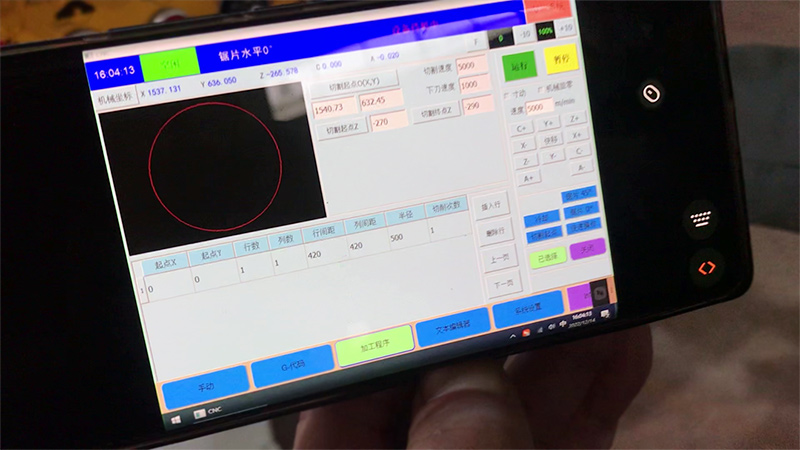

Magnus 5 CNC bridge saw provides remote control and diagnosis with Wi-Fi that the technician can provide remote support and training on a Pad or smart phone.

SPECIFICATION

Control System 5-axis CNC

Blade Size  14" - 18"  Ø350 - Ø450 mm

Cut length  138"  3500 mm

Cut width  79"  2000 mm

X axis stroke  142"  3600 mm Servo Motor

Y axis stroke  87"  2200 mm Servo Motor

Z axis stroke  20"  500 mm Servo Motor

C axis stroke  0 - 360° Servo Motor

A axis stroke  0 - 90° Servo Motor

Table size  138"×79"  3500×2000mm

Blade Motor  25HP  18.5 Kw  0-3000RPM Variable

Drilling/Milling motor   8.2HP  6Kw 0-18000RPM Variable

Total Power  50HP  37Kw

Overall Size (L/W/H)  19.3' × 11.1' × 11.8'  5.9 × 3.4 × 3.6 m

Total Weight  13,000 lbs  6000 Kg
