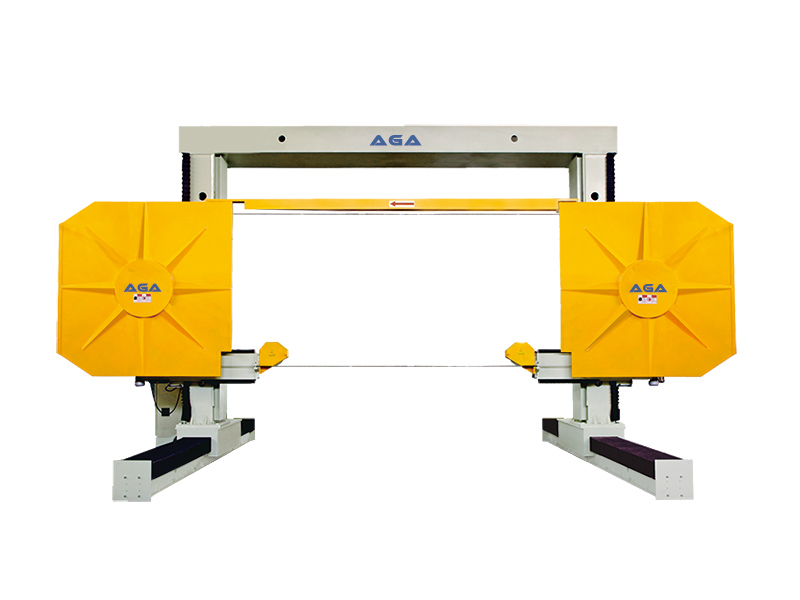

Movable Wire Saw Machine
Movable wire saw machine for cutting granite, marble, limestone, sandstone and natural stones.

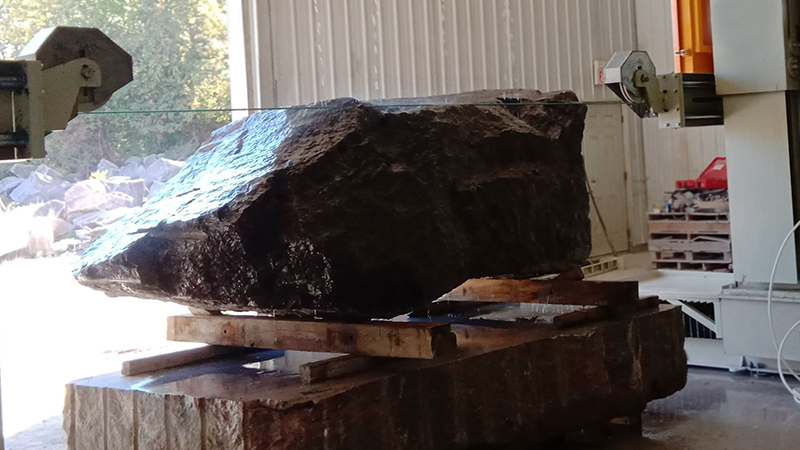

A movable wire saw machine making straight cuts on granite, marble, limestone, sandstone and natural stones.

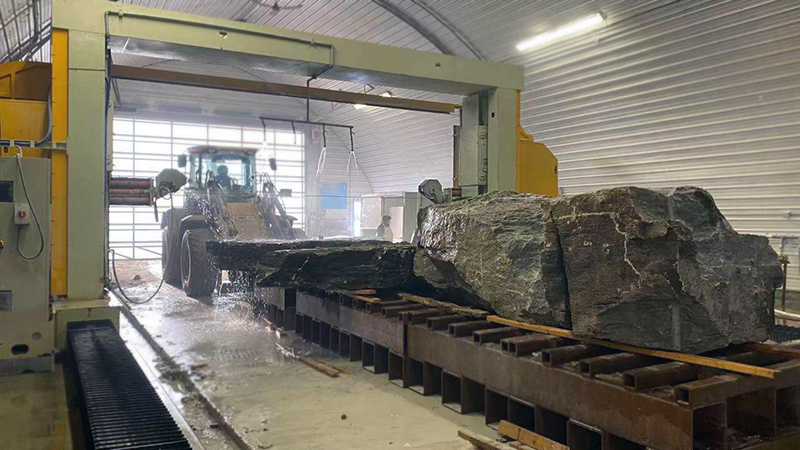

The wire saw machine is applicable for sawing several stone blocks in queue saving time of switching blocks.

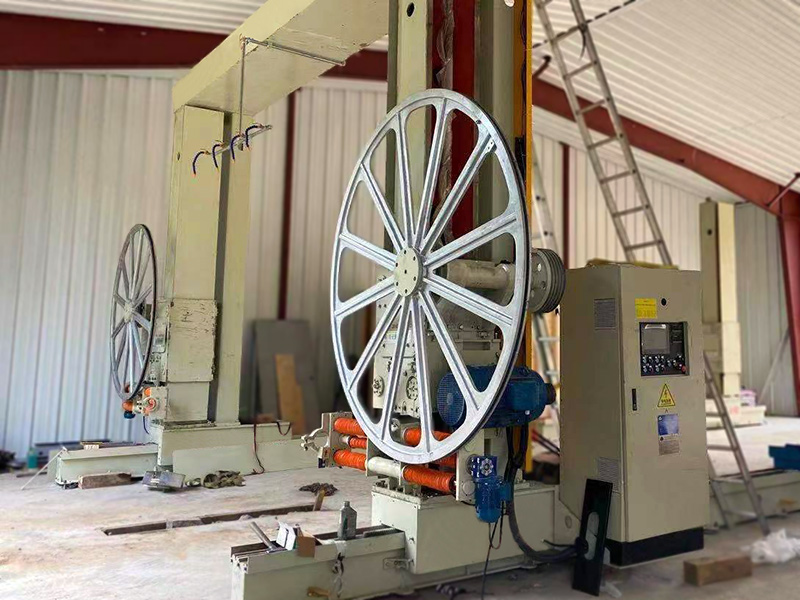

With super long side rails the wire saw is able to move and cut several blocks in queue.

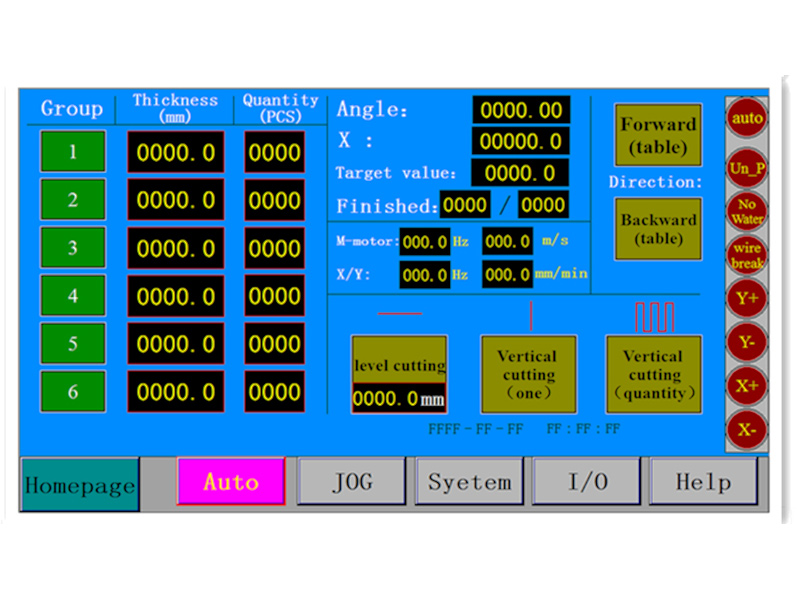

Automatic cutting by program and flexible control with micro computer very easy to operate.

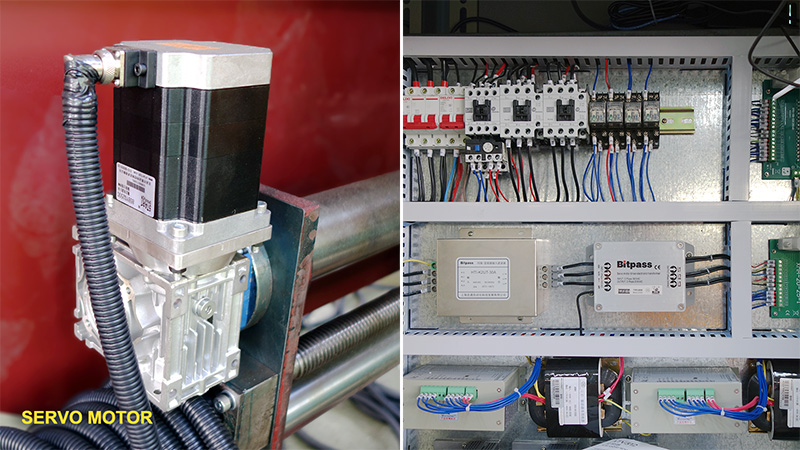

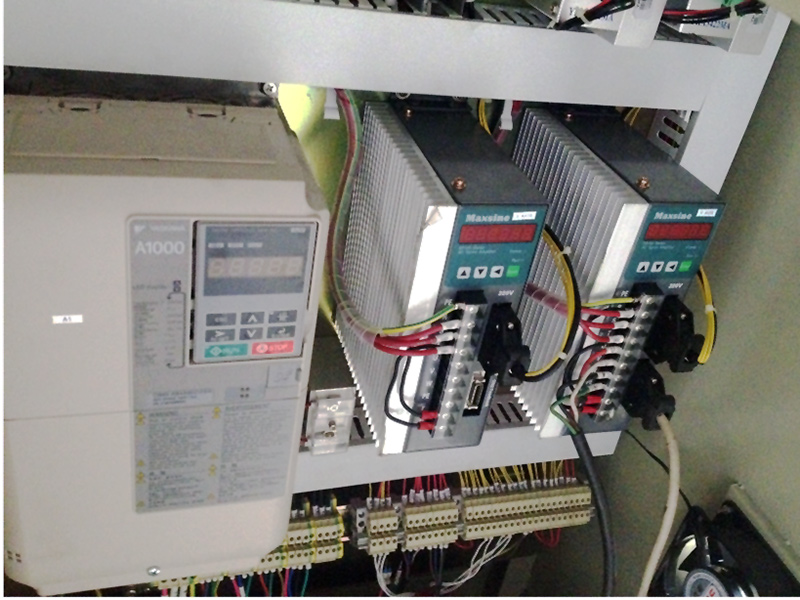

Servo motors and drives for precise cutting and stable performance.
Machine structure made of very strong Cast Iron ensuring stability and long lifetime.

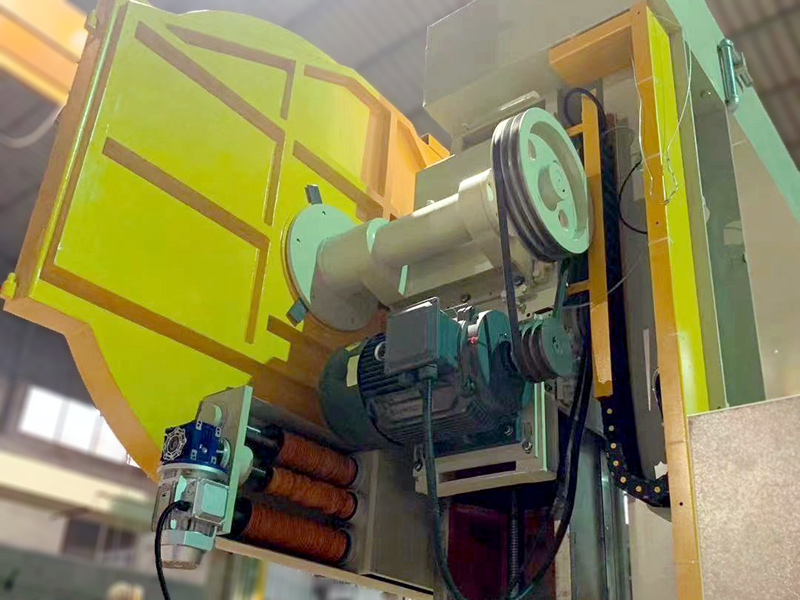

Machine spindle motor with Variable speed for heavy duty work on marble, granite, limestone, sandstone, etc.
Custom built available for super long side rails up to 10m 32.8’.
SPECIFICATION WIRE SAW WSM3300 MOVABLE
Max. Cut Length 3.3 m 130"
Max. Cut Width 5.3 m 210"
Max. Cut Height 1.5 m 59"
Wire Diameter Φ8 - Φ11 mm
Wire Length 17.3 m 56.7'
Linear Cut Speed 0 – 40 m/s Variable
Spindle Motor 11 Kw 15HP
Total Power 16.5 Kw 22.5HP
Water Consumption 3 m3/h
Production Rate 1-3 m2/h Marble 0.5-2 m2/h Granite
Overall Size (L/W/H) 8.2 × 6.1 ×4 m 27'×20'×13'
Weight 10,000 Kg 22,000 lbs
