PRODUCT

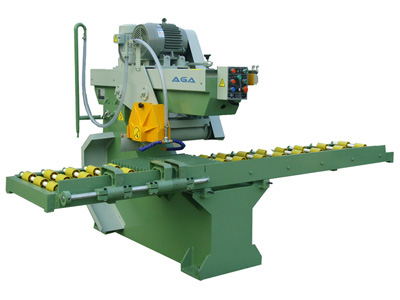

Cross Cutting Machine
Cross cutter machine for sizing slabs
Product ID : QB650H
Product Attributes :
Stone cutting machine for edge sizing and trimming
Product Description
The machine is designed for fast cutting work on sizing the stone slabs.
The stone material is easy to be positioned on and off the table rollers.

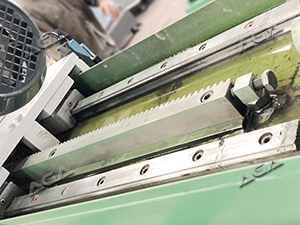

The blade travels on Cast Iron V guides with Linear Guide in oil bath for Fast & Precise cuts.

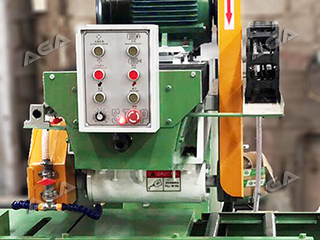

Variable cutting speed via Inverter fitting kinds of stone materials.
Capable of auto and manual cutting very easy to operate.

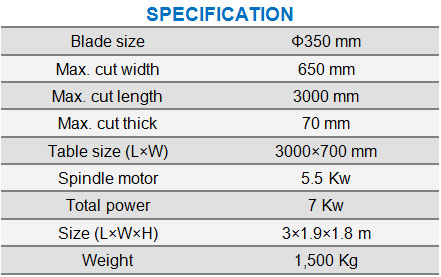

SPECIFICATION
Blade size Φ350 mm
Max cut width 650 mm
Max cut length 3000 mm
Max cut thick 70 mm
Table size 3000×700 mm L / W
Spindle motor 5.5 Kw 7.5 HP
Total power 7 Kw 9.5 HP
Size 3×1.9×1.8 m L / W / H
Approx weight 1,500 Kg
